Beijer

Beijer Electronics is a high technology company active in industrial automation and data communication. They’re a multinational group with roots in Swedish engineering. By creating and developing innovative technologies and software they increase customer’s efficiency and reduce their costs, wherever they’re based.

Distributor Beijer

Together with Beijer Electronics, Tech Box oﬀers a broad product range within industrial automation and communication, developed with the same passion for technology you have yourself. Expanding the oﬀerring beyond HMI into control, communication and drive systems, Beijer Electronics gives you even smarter ways to rise to any automation challenge.

People have learned to use technology to deliver the goods and services we use in our daily lives. Take a look around you. Wherever there are processes to drive and control, or information to communicate and visualize, there is a need for smart hardware and software solutions. This interface between people and technology is where Beijer Electronics comes in as bridge-builder.

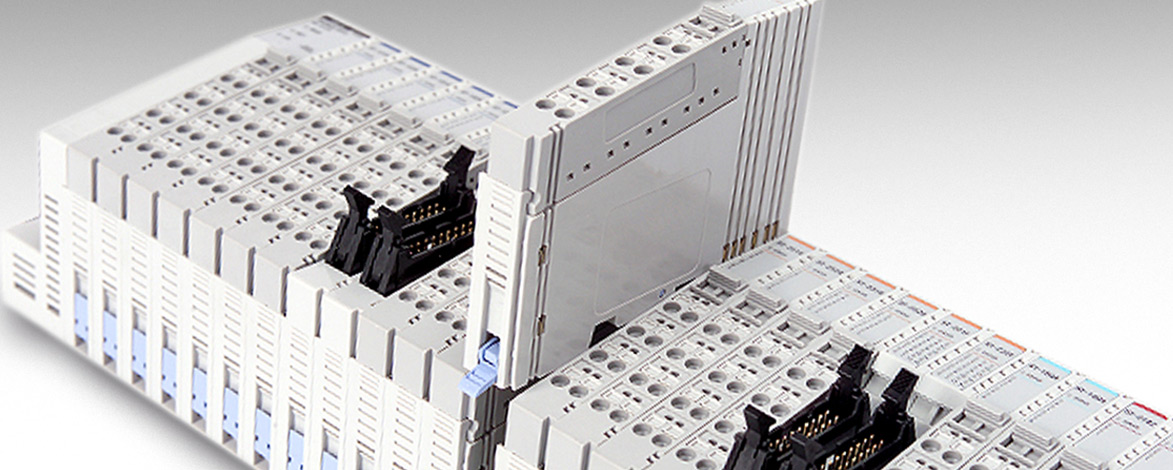

Distributed IO

Mix and match to fit your specific needs

The compact and cost-effective S-series is a perfect choice for the majority of applications in many different industrial segments. Get the building blocks for a compact and flexible IO solution with many clever details. Choose from the most popular communication interfaces on the market, from Profibus to Ethernet. The software for configuration and monitoring is powerful and easy-to-use .

64 IOs on 90mm

A standard IO module is only 12 mm in width, and when using 16 channel IO modules a complete node is made up of 64 IOs of only 90 mm in width.

EtherCAT ready

Besides EtherCAT, S-series supports most field busses used in the automation industry.

Gold
plated

Stable communication between the modules in the node is guaranteed via a unique, gold plated sliding contact system.

Free software

IO Guide PRO is used to configure S-series remote IOs.

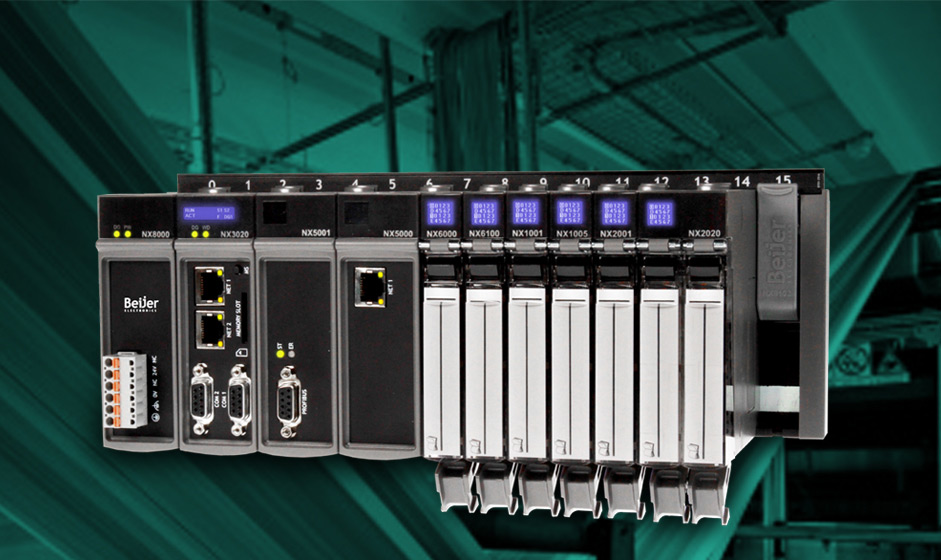

Nexto PLC

Powerfull

Scalable, modular PLC which gives you full control

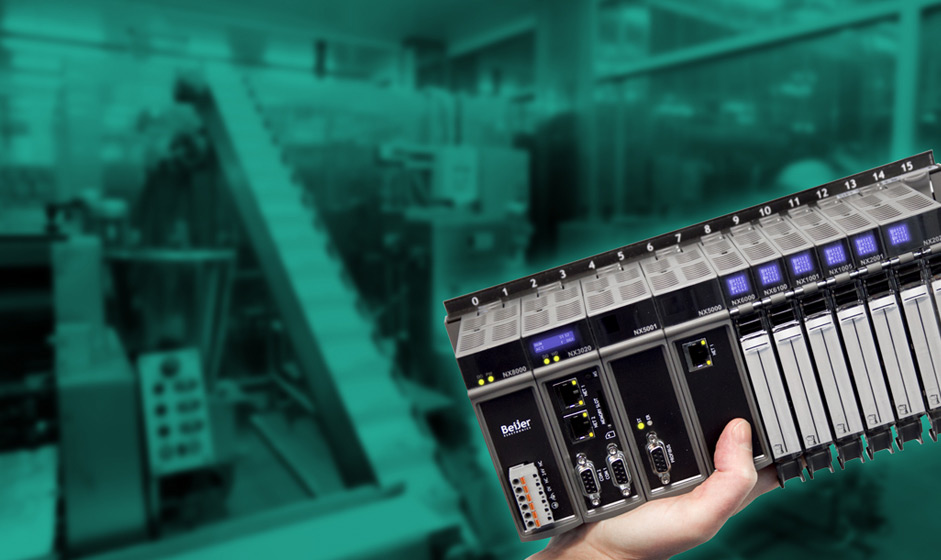

The future in your hand
- Nexto delivers premium reliability and connectivity
- There’s an integrated programming environment
  along with cutting-edge technology
  supplying hot-swap functionality
- In addition, Nexto features one-touch diagnostics
  with clear and bright LCD display

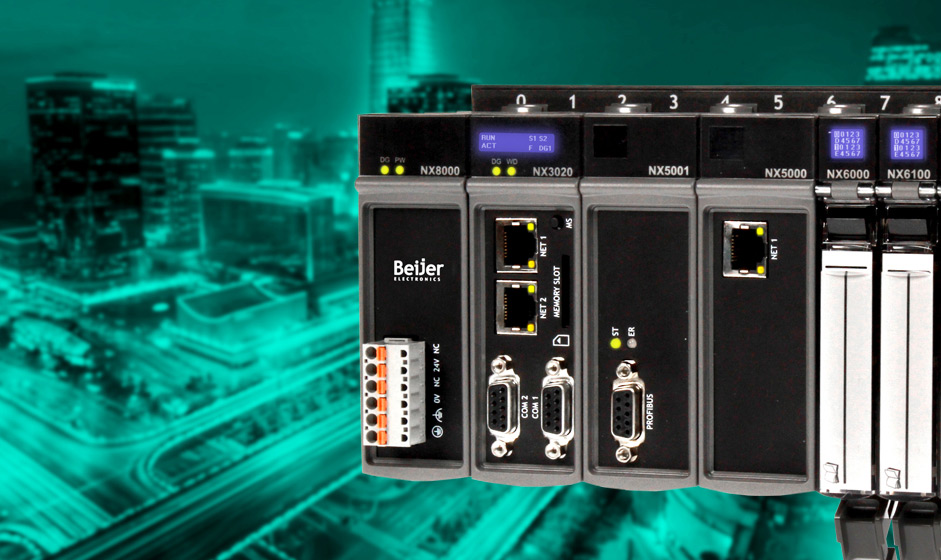

Reliable
- Industrial strength hardware, intuitive software,
  all-in-one dependability
- Redundancy at numerous levels
- All modules support hot-swap
- One-touch diagnosis
- Remote access diagnosis
- IP protection and login password
Scalable
- Fast, high-performance automation control
  that’s easy to integrate
- High-performance open architecture
- EtherCAT-based backplane
- High connectivity via PROFIBUS DP and Modbus RTU/TCP
- Optimum automation regardless of system size
- Expandable by up to 24 remote racks
  without loss of performance

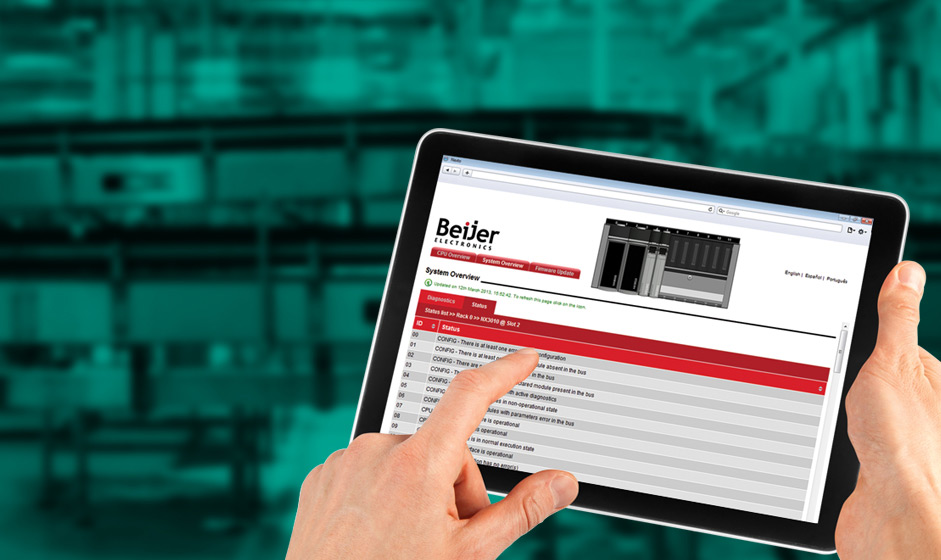

Efficient
- CODESYS-based software, innovative functionality, does-it-all efficiency
- CODESYS-based software
- Onboard full-documentation
- Online/offline simulation
- All modules support hot-swap

Nexto products

Racks
Power supply modules
CPUs – central processing units
Special modules
Fieldbus interfaces
I/O modules
Accessories
Software

Operator panels

X2 BASE

- Cost-effective, full functionality HMIs
- X2 base panels are cost-effective industrial HMIs with high-resolution touch-screens and modern design. The panels combine IP65 corrosion resistant plastic housing with the full version of the iX software, providing a cost-effective yet advanced HMI solution for small to medium applications.
- Available in 5, 7 and 10 inches
- Corrosion resistant IP65 plastic housing
- Wide screen format
- Power efficient ARM9 processors
- Operating temperature -10°C to +50° C
- UL, CE, FCC and KCC certificates
- All the communication ports you need
- iX software – why you’ll love our hardware
- Fast forward engineering with WARP
- Non-branded front – option

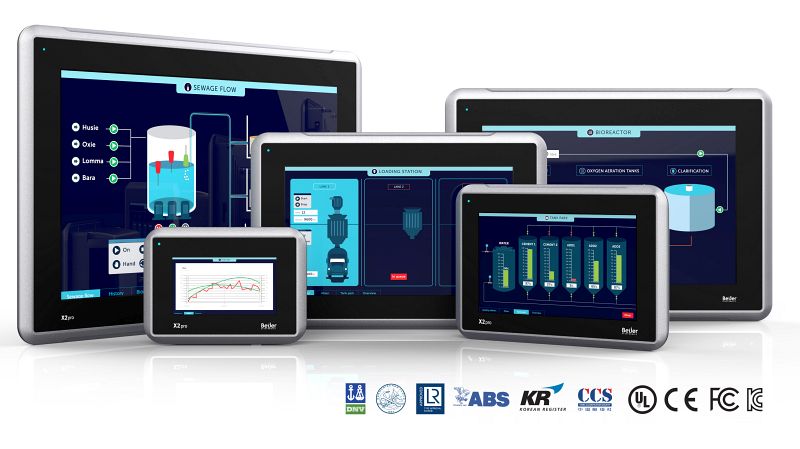

X2 PRO

- High performance HMIs for all automation needs
- X2 pro includes a wide range of high performance industrial panels from ultra-compact 4-inch to 15-inch panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology and a wide range of connectivity options to cover all your automation needs.
- Available in 4, 7, 10, 12 and 15 inches
- Powerful ARM Cortex-A9 processor
- IP65, NEMA 4X/12 and UL Type 4X/12
- Wide operating temperature -10°C to +60°C
- UL, CE, FCC and KCC certificates
- Extended classes of marine certifications
- iX software – why you’ll love our hardware
- Fast forward engineering with WARP
- Wide screen format
- SD memory card
- Non-branded front – option
- CiX CAN, Profibus and MPI module – option

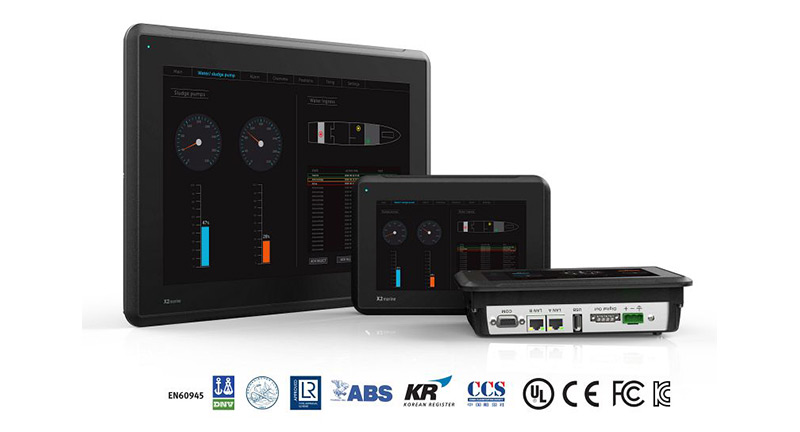

X2 Marine

- Built for life at sea
- X2 marine panels offer user-friendly, reliable operation off-shore, on ships and in other maritime applications. With black frame and nautical society certifications, panels are suitable for mounting on the bridge, in the engine room and inside cabins. X2 marine panels are available with optional high brightness display and integrated CODESYS PLC functionality.
- Available in 7 and 15 inches with optional high brightness display and integrated CODESYS PLC functionality
- Extended classes of marine certifications
- UL, CE, FCC and KCC certificates
- Powerful ARM Cortex-A9 processor
- Dimmable backlight
- Built-in digital outputs
- Internal isolation
- Wide operating temperature -10°C to +60°C
- IP65, NEMA 4X/12 and UL Type 4X/12
- iX software – why you’ll love our hardware
- Fast forward engineering with WARP
- SD memory card
- Wide screen format
- High brightness display - option
- Add control by CODESYS – option
- Non-branded front – option
- CiX CAN, Profibus and MPI module – option

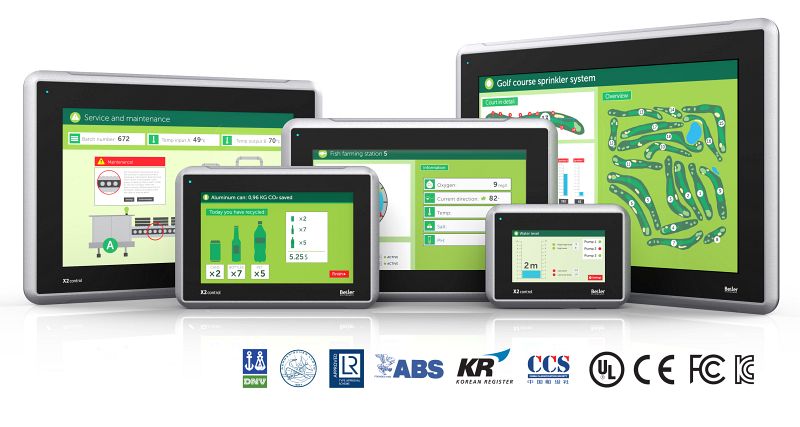

X2 Control

- Integrated CODESYS control
- X2 control panels combine industrial HMI and CODESYS PLC functionality in the same compact hardware. Panels range from ultra-compact 4-inch to 15-inch panels designed for demanding applications. Add standard distributed I/Os and you'll get an elegant, scalable and cost-effective solution that's cutting-edge.
- Available in 4, 7, 10, 12 and 15 inches
- Control by CODESYS
- Configuration freedom
- Less risk of error with one system
- EtherCAT as standard
- Powerful ARM Cortex-A9 processor
- Wide operating temperature -10°C to +60°C
- UL, CE, FCC and KCC certificates
- 2 Ethernet ports as standard
- Extended classes of marine certifications
- IP65, NEMA 4X/12 and UL Type 4X/12
- iX software – why you’ll love our hardware
- Fast forward engineering with WARP
- SD memory card
- Wide screen format
- Non-branded front – option
- CiX CAN, Profibus and MPI module – option

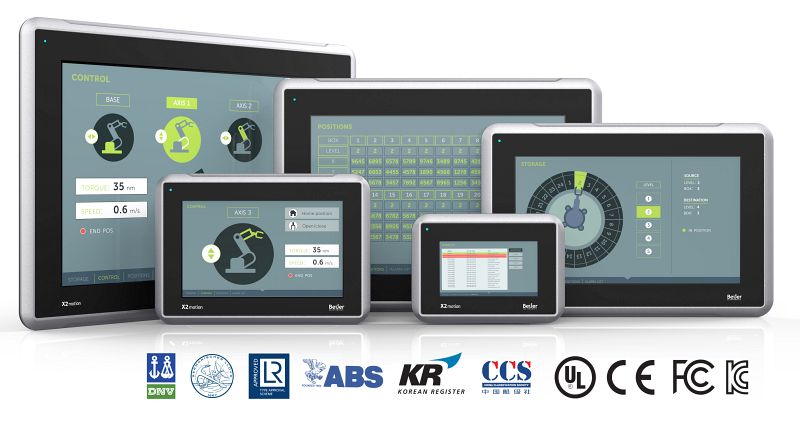

X2 Motion

- Integrated CODESYS motion and control
- X2 motion panels deliver intuitive HMI with integrated CODESYS motion and PLC functionality in the same compact hardware. Panels range from ultra-compact 4-inch to 15-inch panels designed for demanding applications. Our lean yet powerful hardware with super-fast EtherCAT communication provides the speed you want with the stability you need.
- Available in 4, 7, 10, 12 and 15 inches
- Control and motion by CODESYS
- Configuration freedom
- Get a head start
- Servo drives & motors fitting seamlessly
- EtherCAT as standard
- Powerful ARM Cortex-A9 processor
- Wide operating temperature -10°C to +60°C
- UL, CE, FCC and KCC certificates
- 2 Ethernet ports as standard
- Extended classes of marine certifications
- IP65, NEMA 4X/12 and UL Type 4X/12
- iX software – why you’ll love our hardware
- Fast forward engineering with WARP
- SD memory card
- Wide screen format
- Non-branded front – option
- CiX CAN, Profibus and MPI module – option

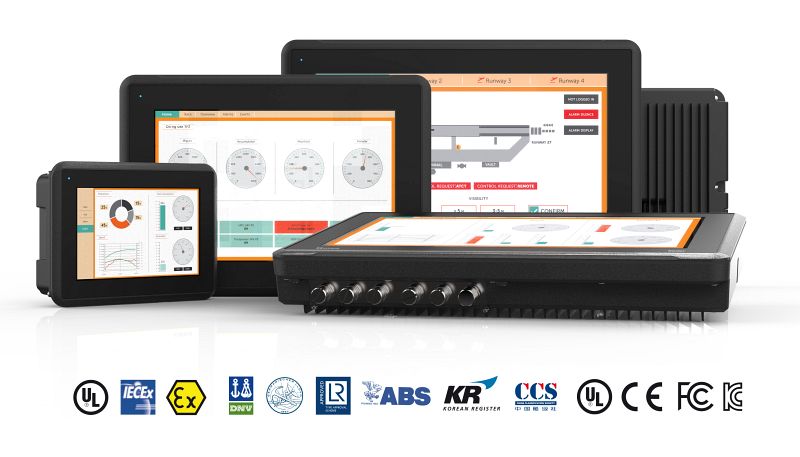

X2 Extreme

- Rugged HMIs for tough environments
- X2 extreme is certified by all major classification societies. Designed to perform in rugged marine environments and in hazardous areas where gases, vapors and dust are present. Extended environmental capabilities include operating temperatures from -30°C to +70°C, high vibrations and high-pressure wash-downs. X2 extreme panels are available with optional high brightness display, integrated CODESYS PLC functionality and in a fully sealed version.
- X2 extreme panels are available in 7, 12 and 15 inches, all in 3 versions. A standard version, a high performance version with high brightness display and integrated CODESYS PLC functionality, and a fully sealed version.
- Extended classes of marine certifications
- UL, CE, FCC and KCC certificates
- Certified for hazardous environments
- Extensive testing
- IP66, NEMA 4X/12 and UL Type 4X/12
- Fully sealed version
- ...& more

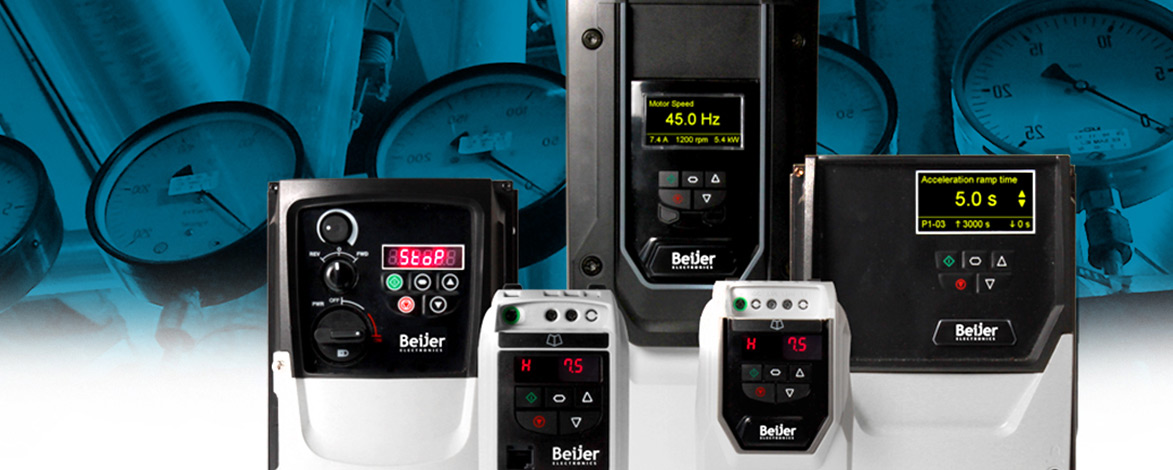

Frequency inverters

Optimal solutions for every drive system

If your drive solution starts with a frequency inverter, start by talking with us. Explore our complete range of industrial drives for general and HVAC applications, including control of both standard and PM motors. Choose between inverters in the range 0.1-160kW and enclosure classes IP20, IP55 and IP66.

BFI E3

General purpose inverters

Cost competitive, user-friendly inverters for rugged, reliable control.

BFI H3

Dedicated HVAC inverters

Easy-to-use, robust inverters dedicated to fan and pump control.

BFI P2

High performance inverters

Excellent usability, high performance inverters for advanced motor control.

BFI Tools

PC software

Simplifying drive commissioning and parameter backup.

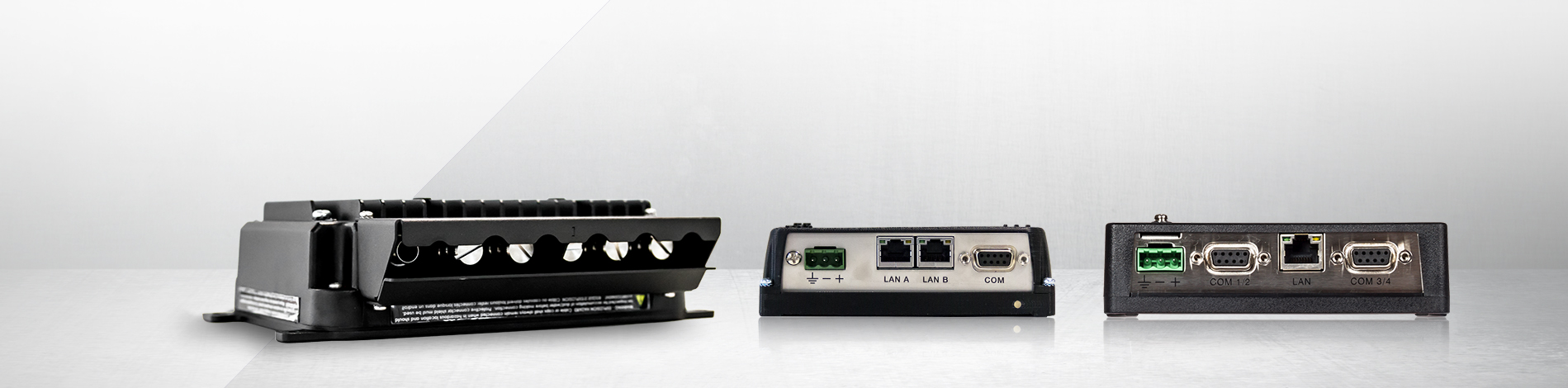

BoX2 - IoT gateways

Clever connectivity. Added smart functions.

BoX2 is available in versions designed for industrial environments with high temperature, moisture and vibration. BoX2 offers standard industrial certifications, extended classes of marine and hazardous area certifications.

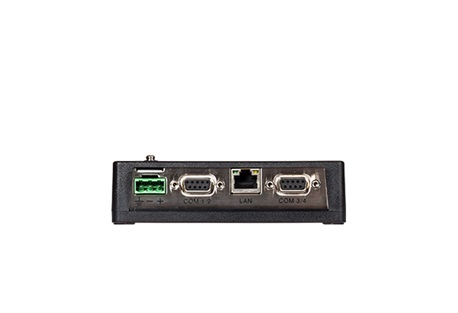

BoX2 base

Cost-effective IoT gateway

UL, CE, FCC, KCC certificates
Flexible mounting on DIN-rail
IP20
Corrosion resistant plastic housing
Operating temperature -10° to +50° C

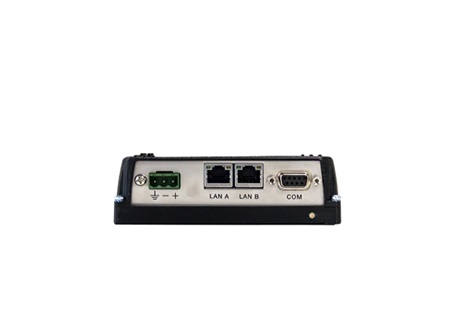

BoX2 pro

High-performance IoT gateway

UL, CE, FCC, KCC certificates
Marine certifications
Flexible mounting on DIN-rail
IP20
Robust aluminum housing
Operating temperature -10° to +60° C

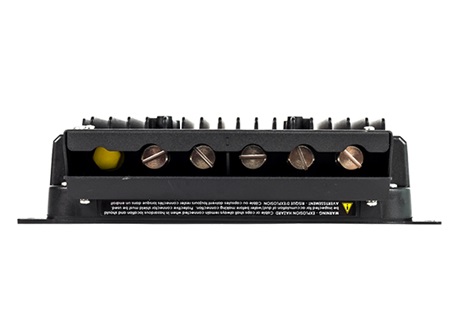

BoX2 extreme

Rugged IoT gateway

UL, CE, FCC, KCC certificates
Marine certifications
Certified for hazardous environments
Flexible mounting on DIN-rail or base plate
IP66, NEMA 4X/12 and UL Type 4X/12
Robust aluminum housing
Operating temperature -30° to +70° C
High vibration resistance
